Blender 노멀맵 노드 / Substance Painter 8.12 업데이트

8.12 원문 (링크)

(Released: July 19, 2022)
Summary: Minor bugfix release

Added:

• [Auto Unwrap] New option "Optimize for organic meshes" to select the segmentation algorithm
• [Physical Size] Expose unit options in New Project and Project Configuration
• [Color Management] Use monitor Display by default when using ACE
• [Color Management][Python] Take into account ACE env-var preset file when creating project
• [Color Management] Reset Color Management settings in New Project window when the configuration changes
• [Color Management] Disable OCIO settings access when env-var is present
• [Color Management] Safely update ACE settings when a parameter does not exist anymore
• Update Substance Engine to version 8.6.0
• [Export] Add new GLTF export preset with Displacement support
• [Scripting][Python] Retrieve resource information (including custom metadata)
• [Scripting][Python] Add function to query list of mesh names per Texture Set
• [Content] Add new Blender template and export preset

Fixed:

• [MacOS] Crash when launching Iray in some cases
• [Thumbnails] Shelf thumbnails do not load properly
• Multiple UV channels are ignored
• [Auto Unwrap] Unnecessary computation when splitting long islands
• [Auto Unwrap] Option avoid elongated islands not taken into account
• [Auto Unwrap] Loss of extra data (vertex colors) when repacking UVs
• [UI] Horizontal scrollbar in properties window when Color Management is enabled
• [Color Management] OCIO configs are missing substance_3d_painter_standard_srgb role
• [Generator] Wrong usage of User data "disabled"
• [Color Management] Color Space "Not Compatible" dropdown should not be clickable
• [Color Management][Shader] sRGB override define doesn't work anymore
• [Generator] Wrong usage of User data "disable"
• [Layer stack] Broken previews with UV Tiles projects
• [Shader] API documentation is not fully up to date with Bent Normals
• [Export][Interoperability] Cannot send to Stager with special characters
• [Content] Some brush presets thumbnails are empty or too dark

Known Issues:

• [Color Management] HDR color space conversions with ACE on Linux produce clamped colors
• [Layer Stack] Input source are not saved per layer
• [Crash] Ctrl Z After deleting a shader instance
• [Iray] IoR is blocked to 1 for some shaders
• [Shader] Crash with old faulty shader

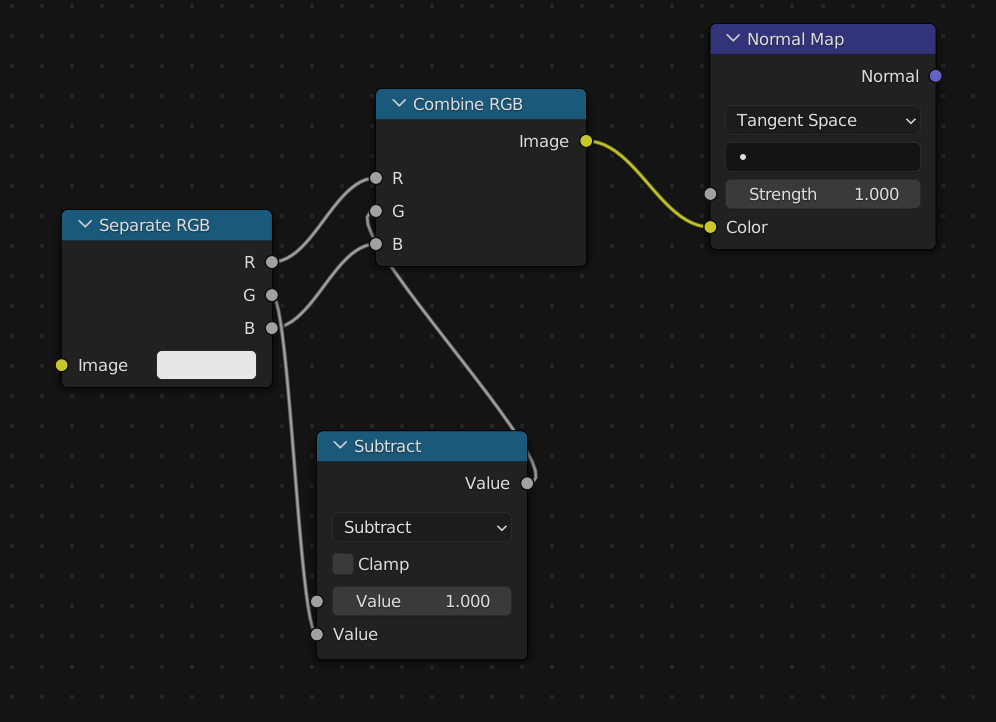

기존에는 아래처럼 추출한 노멀맵을 몇가지 노드를 추가한 후 노멀에 연결해줬어야 했는데

이제는 텍스쳐를 바로 노멀에 연결하면 정상적으로 노멀맵이 표현되서 편해졌습니다.

G채널 반전을 하고 싶다면 DirectX는 OpenGL로, OpenGL은 DirectX로 바꿔서 텍스쳐를 추출하면 됩니다.
